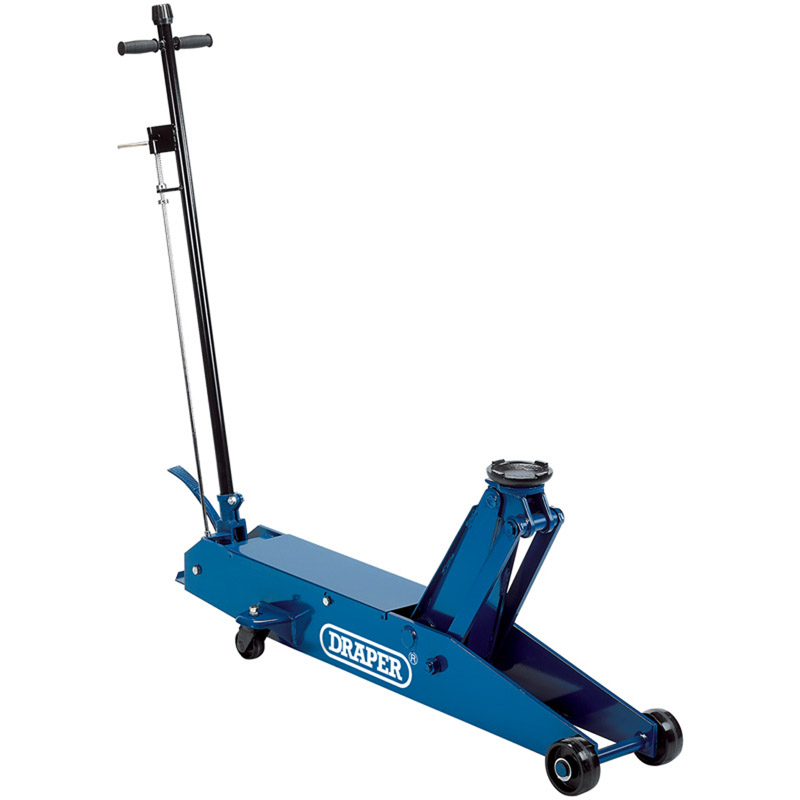

Heavy Duty ‘Quick Lift’ Trolley Jack (5 tonne)

Heavy duty with 'quick lift' foot pedal. Locking facility allows the handle to be locked in three positions. The long chassis of the trolley jack is fitted with rear swivelling castor wheels and large saddle to aid positioning under the vehicle. The jack incorporates safety overload and bypass valves to prevent overloading the jack. Supplied with one piece handle. Carton packed on pallet.

Specification

Capacity   5 tonnes (5000kg)
Lifting range (max.)   145 - 550mm
Overall size   1450 x 350 x 200mm
Weight   101kg

Standards

Manufactured to EN1494 Specification
