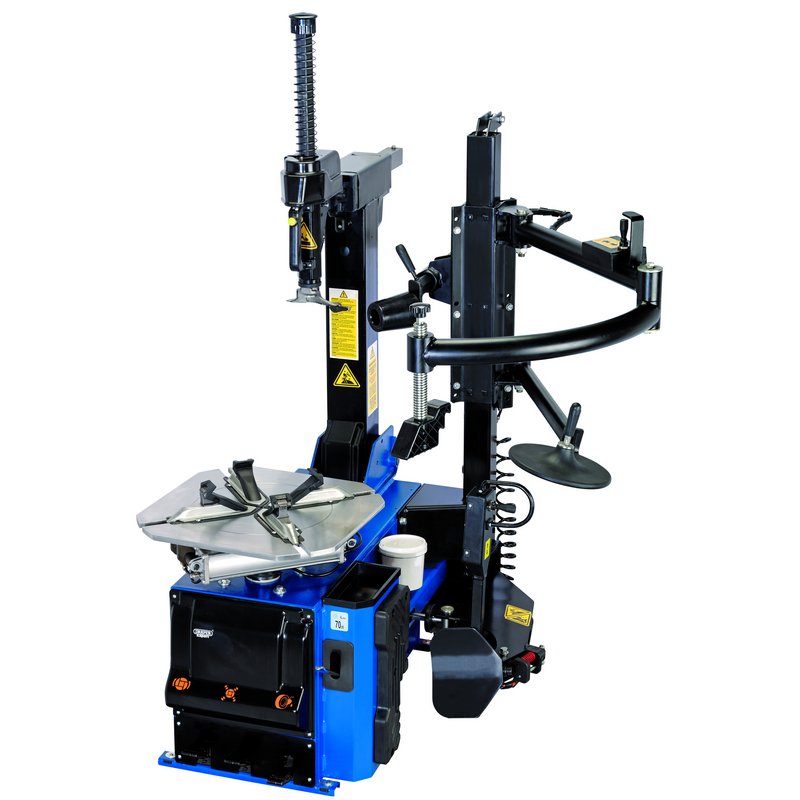

Semi Automatic Tyre Changer with Assist Arm

4,314.52 (inc. VAT)

SKU: DR78612 Category:

Product details

Expert Quality, semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26". Fitted with an assist arm (also known as a third arm) to aid the user when changing low profile and run flat tyres. The fully motorised turntable, pneumatically operated clamping jaws, powerful pneumatic bead breaker and tilt column enables the changing of low profile and run flat tyres quickly and easily. The self-centering four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The machine is operated from a standard 13amp 3 pin plug. Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.


Motor   1.1KW
Power supply   230V
Bead breaker force   2100kg
Pneumatic supply   90 - 115psi (6-8BAR)
Suitable for use on wheel width   3" to 18"
For rim dia. (internal locking)   13" to 26"
For rim dia. (external locking)   12" to 25"
Max wheel diameter   45"
Dimensions   1900 x 1950 x 1650mm
Weight   350kg


Please note, this product now includes installation in the price, so let us help you to get set up in your garage or workshop. Postcode restrictions apply.

Additional information

Weight 350.000 kg
