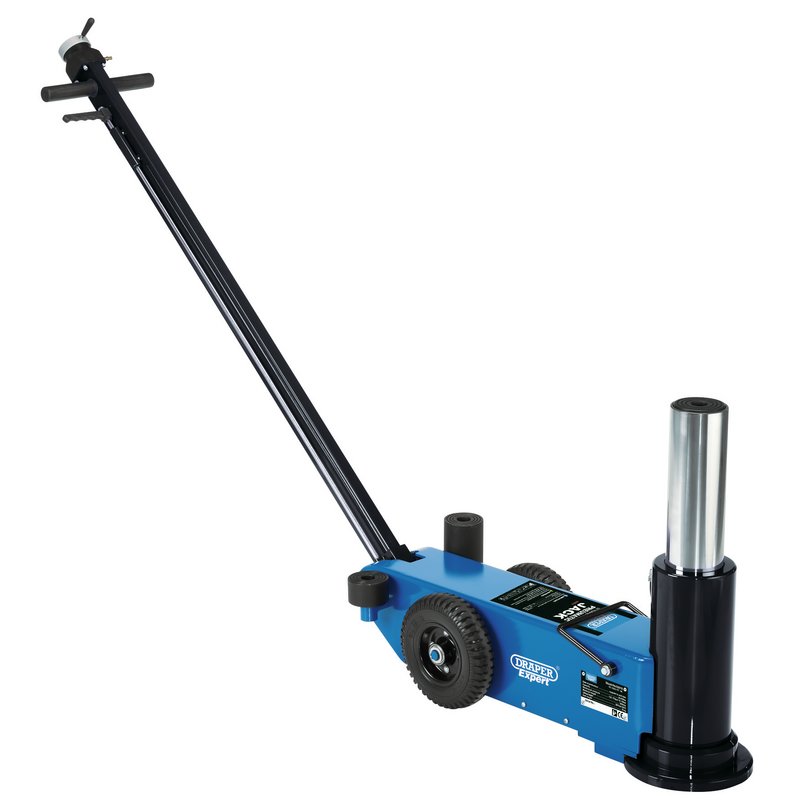

Pneumatic High Lift Jack (30 Tonne)

2,934.51 (inc. VAT)

SKU: DR02078 Category:

Product details

Expert Quality, portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a “Slow Down" valve and a “Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Specification

Capacity   30 Tonne (30,000kg)
Minimum height   360mm
Maximum height   772mm (inc extensions)
Lift height   267mm
Operating air pressure   9 – 12BAR (130 – 174psi)
Air consumption   11.5cfm
Air inlet   1/4" BSP
Wheel diameter   200mm
Wheel width   55.5mm
Saddle diameter   83.6mm
Extensions   45mm and 100mm
Handle length   1380mm
Chassis size   840 x 215 x 360mm
Nett weight   87kg

Standards

Manufactured to EN1494 Specification

Additional information

Weight 81.820 kg
